Dimensions 3D

VIEW CASE STUDIES

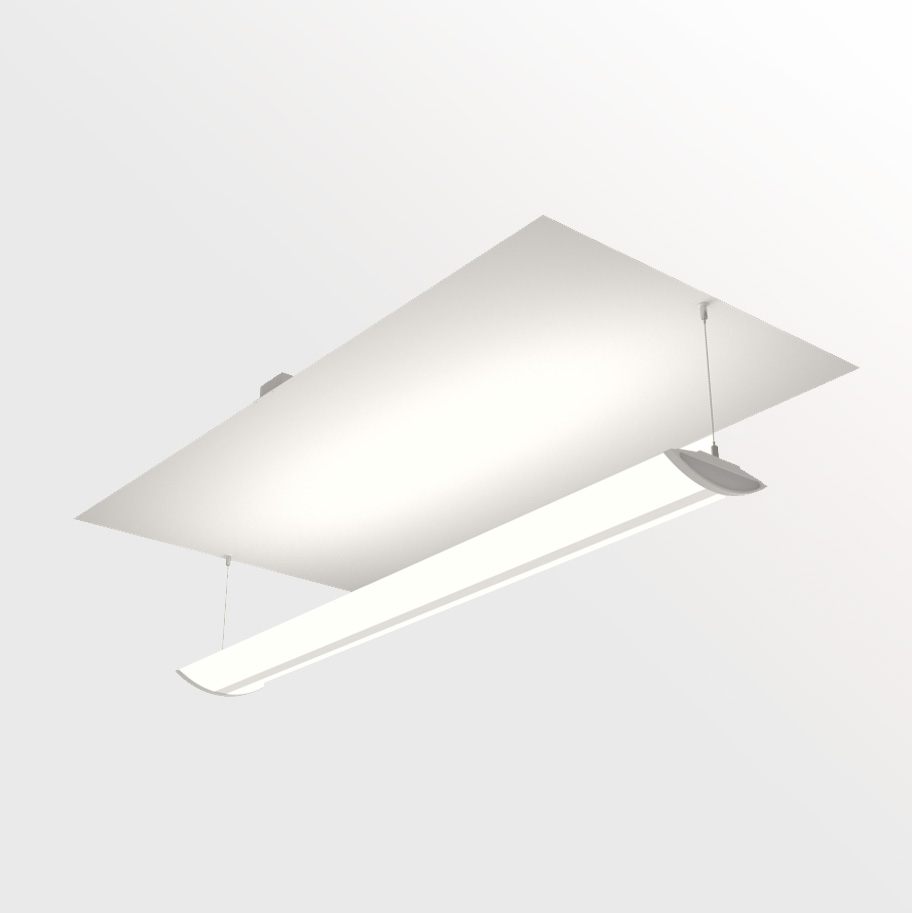

A 1.5” depth light engine features 4 layers of light shaping diffusion film providing soft low glare illumination with 50% up-light. The light engine quickly connects to a troffer style aluminum ceiling grid panel with low voltage powered wire rope. The textured powder coat paint evenly diffuses the soft up-light, creating a pleasing volumetric effect.

Benefits

Specs + features

Ordering info

IES FILES

SPEC SHEET

INSTALLATION

Key benefits

Evenly diffused to give your room a soft open feel
Advanced Thermal Protection
Aluminum powder coated panel that fits in the ceiling grid like any troffer
Low glare
Saves on installation time

Want to view our other products? Check out the EcoWing V Series, EcoWing R Series and Dimensions LG Series.

Specs + features

Optics

1.5” depth light engine includes 4 layers of light shaping diffusion film
Fully diffused low glare optics provide unprecedented efficacy up to 142 lm/w
50% up-light or option for no up-light
Light engine mounted to main panel with powered wire rope.

Construction

Ultra-shallow light engine depth of 1.75” with sealed lens system design for maintenance free fixture life
.032” aluminum base panel with textured powder coat
Aluminum heat sink cooled by circulating room air for long LED life

Electrical

Light engine powered with low voltage through wire rope
Quick connect gripper attachments
100-277V standard
Optional 347V LED driver
Standard 0-10v dimming
Multiple driver upgrade options
5-year limited warranty includes all components

Rated Life

66,000+ hours L70 TM-21

Available Options

Master/Satellite wiring certified
Emergency battery backup
Whips available

Size Options

Standard 2’x2’ and 2’x4’
Available in custom sizes

Installation

Panel drops into ceiling grid
Standard electrical connections
Light engine installs last with powered wire rope with gripper quick connects
